Corrugated Steel Silo

Introduction

The corrugated steel silo inner wall use transverse spiral undercut ribs, high strength, good sealing, strong corrosion resistance and long service life.

As a complete set of engineering manufacturers of corrugated steel silos in China, Henan Huatai Group special attention to quality of silo. By continuous develop new technology, improve production process and manufacturing level, silo have become safer.

Corrugated Steel Silo Structure

The corrugated steel grain silo is divided into two parts: silo body and top cover.

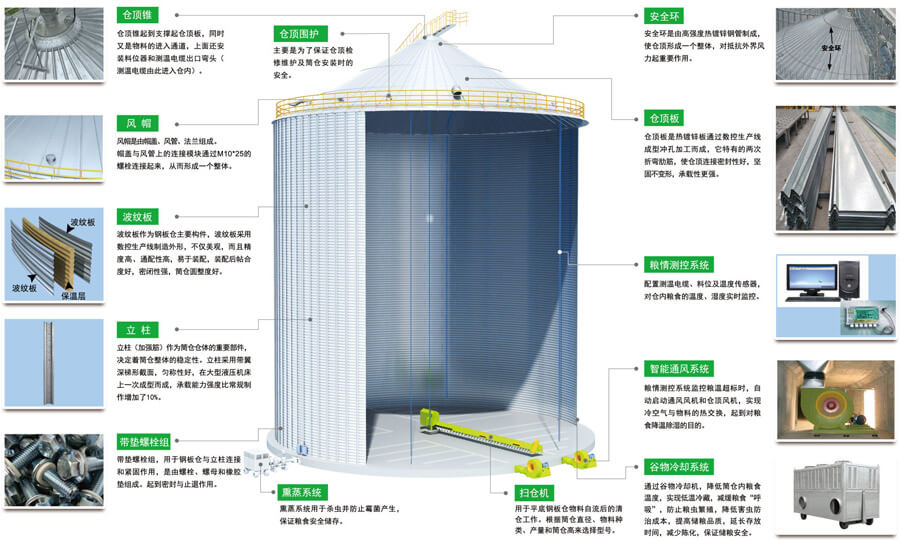

Corrugated steel silo diagram

Silo Body

It is composed of corrugated silo panels, columns, silo doors, ladders and other components.

Corrugated silo panels

The corrugated silo panel use hot-dip galvanized sheets, assembled on special equipment, and use special bolts with built-in spherical pads.

It inside use rubber pads and aviation cement, ensure silo wall panels seal, rainproof and lifespan.

Silo columns

The silo columns are made of Z-shaped steel, design space 0.96 meters. The columns of each section are connected by connecting plates.

Silo doors and ladders

The silo install ladders inside and outside, and silo walls are equipped with silo doors for maintenance people enter and exit to check situation silo inside.

Top Cover

Top cover is composed of components such as beams, silo roof cover plates, tension rings, vents, and top caps.

The silo top cover frame design adopt spatial structure technology, ensure stability under large-span design loads.

Silo eaves installation safe guardrails along circumference, and silo roof have manhole.

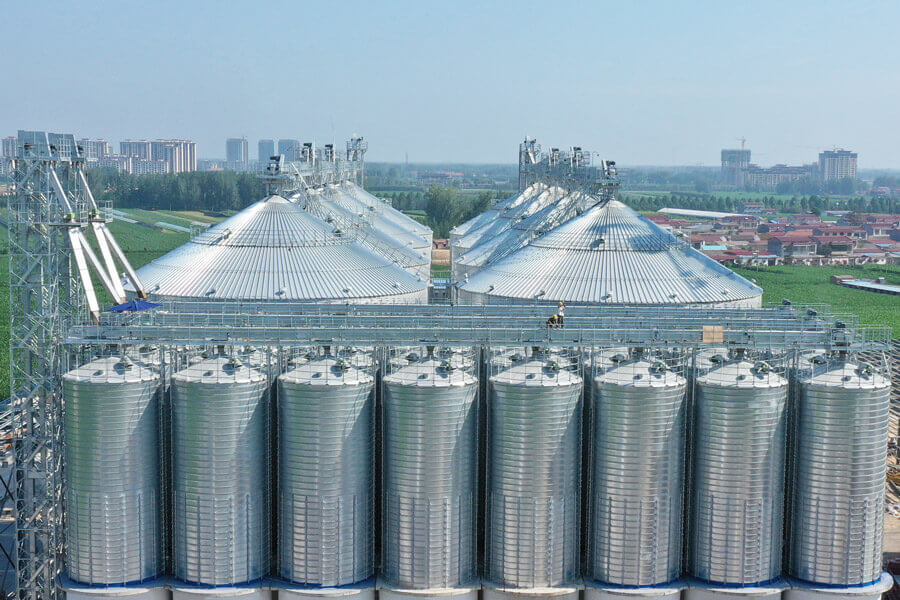

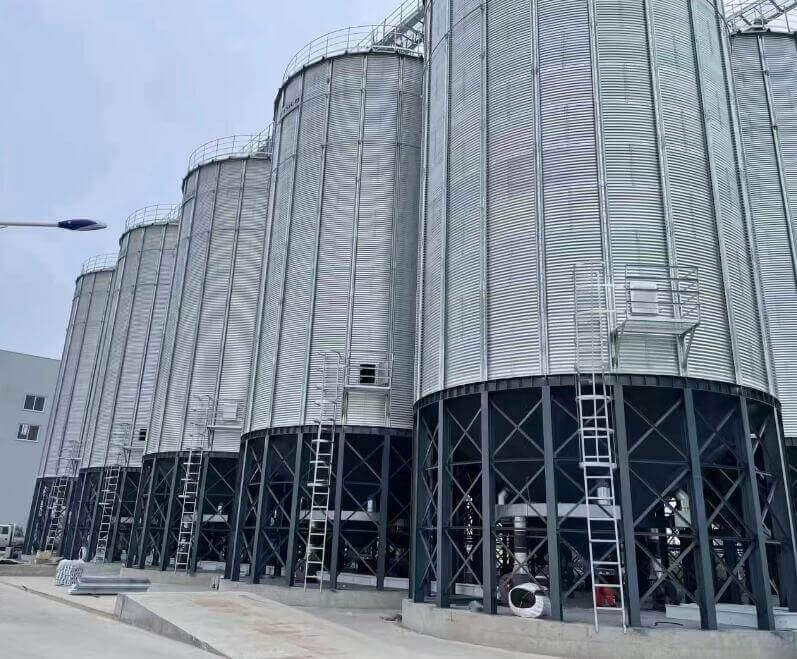

Corrugated metal grain silos

Corrugated Steel Silo Uses

Corrugated steel silos are suitable for store grain, seeds, feed, plastic pellets, cement coal and other granular and powdery materials.

It is used in grain depots, alcohol plants, flour mills, oil plants, starch plants, feed plants, grain and rice plants, malt plants, breweries, ports, farms, grain processing centers, coal mines and other units as grassroots storage warehouses, temporary storage warehouses, transit warehouses, raw material warehouses, grain reserves and other purposes.

Henan Huatai Group Corrugated Grain Silo Params

Volume (m³)	Diameter (m)	Height (m)
10	φ2.5	2
10	φ3	1.4
20	φ2.5	4
	φ3	2.8
	φ3.5	2.1
30	φ2.5	6.1
	φ3	4.3
	φ3.5	3.1
	φ4	2.4
50	φ2.5	10.2
	φ3	7.1
	φ3.5	5.2
	φ4	4
	φ4.5	3.2
100	φ3	14.2
	φ3.5	14.0
	φ4	8
	φ4.5	6.3
	φ5	5.1
	φ5.5	4.2
200	φ3.5	20.8
	φ4	16
	φ4.5	12.6
	φ5	10.2
	φ5.5	8.4
	φ6	7.1
	φ6.5	6.1
300	φ4.5	18.9
	φ5	15.3
	φ5.5	12.6
	φ6	10.6
	φ6.5	9.1
	φ7	7.8
400	φ5	20.4
	φ5.5	16.8
	φ6	14.2
	φ6.5	12.1
	φ7	10.4
	φ8	8
500	φ5.5	21.1
	φ6	17.7
	φ6.5	15.1
	φ7	13
	φ8	10
	φ9	7.9
600	φ5.5	25.3
	φ6	21.2
	φ6.5	18.1
	φ7	15.6
	φ8	11.3
	φ9	9.4
	φ10	7.6
800	φ6	28.3
	φ6.5	24.1
	φ7	20.8
	φ8	15.9
	φ9	12.6
	φ10	10.2
	φ11	8.4
1000	φ7	26
	φ8	19.9
	φ9	15.7
	φ10	12.7
	φ11	10.5
	φ12	8.8
1250	φ8	24.8
	φ9	19.6
	φ10	15.9
	φ11	13.2
	φ12	11.1
	φ13	9.4
1500	φ9	23.6
	φ10	19.1
	φ11	15.8
	φ12	13.3
	φ13	11.3
	φ14	9.7
2000	φ10	25.5
	φ11	21.1
	φ12	17.7
	φ13	15.1
	φ14	13
	φ15	11.3
2500	φ11	26.3
	φ12	22.1
	φ13	18.8
	φ14	16.2
	φ15	14.2
	φ16	12.4
3000	φ12	26.5
	φ13	22.6
	φ14	19.5
	φ15	17
	φ16	15
3500	φ13	26.4
	φ14	22.7
	φ15	19.8
	φ16	17.4
	φ18	13.8
4000	φ14	26
	φ15	22.6
	φ16	19.9
	φ18	15.7
4500	φ14	29.2
	φ15	25.5
	φ16	22.4
	φ18	17.7
	φ20	14.3
5000	φ15	28.9
	φ16	24.9
	φ18	19.7
	φ20	15.9
5500	φ16	27.4
	φ18	21.6
	φ20	17.5
	φ22	14.5
6000	φ16	29.8
	φ18	23.6
	φ20	19.1
	φ22	15.8
	φ23	14.5
	φ24	13.3
7000	φ18	27.5
	φ20	22.3
	φ22	18.4
	φ23	16.9
	φ24	15.5
	φ25	14.3
8000	φ20	25.5
	φ22	21
	φ23	19.3
	φ24	17.7
	φ25	16.3
9000	φ22	23.7
	φ23	21.7
	φ24	19.9
	φ25	18.3
	φ28	14
9500	φ23	23
	φ24	21.2
	φ25	19.5
	φ28	15
10000	φ23	24
	φ24	22.1
	φ25	20.4
	φ28	17
12500	φ28	20

Note: Henan Huatai Group corrugated steel silo diameter and height can be designed and manufactured according to customer requirements.

Henan Huatai Group Corrugated Steel Silo Advantages

High Standardization

It can be made into standard parts accord to materials, and installed on site by standardized, universal and serialized production.

Installation Simple and Quick

All parts of assembled galvanized steel silo are connected by bolts, shorten construction period.

Realize Mechanization

The steel silo have supporting equipment, can be equipped with equipment such as enter and exit silo, sweeping silo, ventilation, drying, temperature and fullness measurement to achieve purpose of safe grain storage.

Simple Demolition and Convenient Maintenance

The metal silo can be relocated because it is bolted, and local plate damage can be replaced.

Low Cost and Long Lifespan

Light weight and low foundation requirements, less steel is consumed, reduce foundation cost.

Due to above advantages, corrugated metal silos cost is reduced, generally 35%-50% of reinforced cement, and lifespan can generally achieve about 30 years.
