Henan Huatai Group grain drying tower

Introduction

Grain drying tower is a commonly used grain drying equipment. Through contact between hot air and grain, evaporate moisture in grain, achieve drying effect. Its working principle mainly includes three parts: hot air generation, transmission and drying process.

Henan Huatai Group grain drying tower can provide higher temperature and ventilation conditions to evaporate moisture in grain faster.

In addition, our grain drying tower can also adjust parameters such as temperature, humidity and wind speed according to grain characteristics and different drying requirements to achieve best drying effect.

Grain Drying Tower Working Principle

The grain drying tower working principle is based on the principles of heat transfer and aerodynamics.

High-temperature hot air generated by hot air system enter tower through hot air distribution system, creating high-temperature and high-humidity environment.

Wet grain enter tower from the top. It falls through each layer, come into full contact with hot air, causing surface and internal moisture to evaporate and form moist hot air. Then expelled from tower by the dehumidification system.

During drying process, the automatic control system adjust hot air temperature, airflow, and grain residence time within the tower based on pre-set parameters to achieve best drying results.

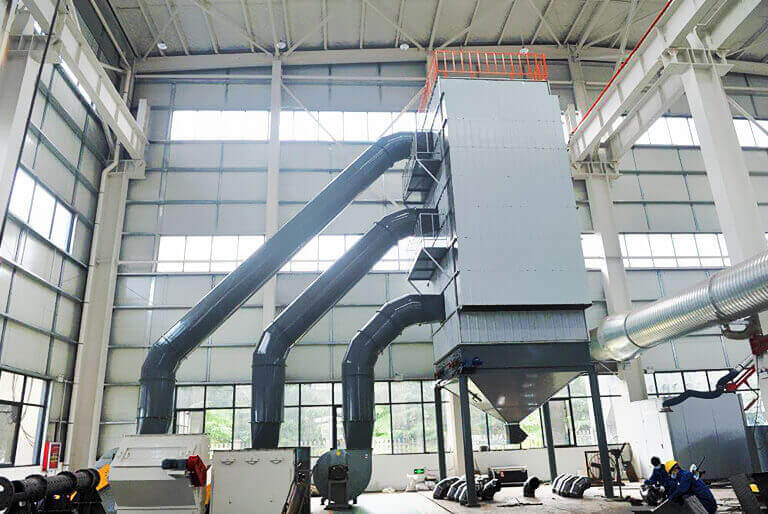

Huatai Group grain drying tower for sale

Huatai Group grain drying tower for sale

How Does Grain Drying Tower Work?

The grain drying tower achieves grain drying through hot air generation, transmission, and drying process.

First, hot air generation is basis of grain drying tower’s operation. Hot air is typically generated by burner, combust fuel to produce high-temperature hot air. Then, hot air is delivered into drying tower via blower.

Inside burner, fuel is mixed with air and combusted, produce high-temperature hot air. It pass through combustion chamber and heat exchanger before being into drying tower.

Second, After hot air is delivered into drying tower inside by blower, it form a flowing layer of hot air within tower.

When grain into drying tower, it comes into full contact with hot air, and hot air high temperature causes moisture in the grain to evaporate.

Finally, drying tower is equipped with an outlet to discharge the dried grain. In drying process, control temperature and humidity of hot air is important. Because it direct impact the grain drying effect and quality.

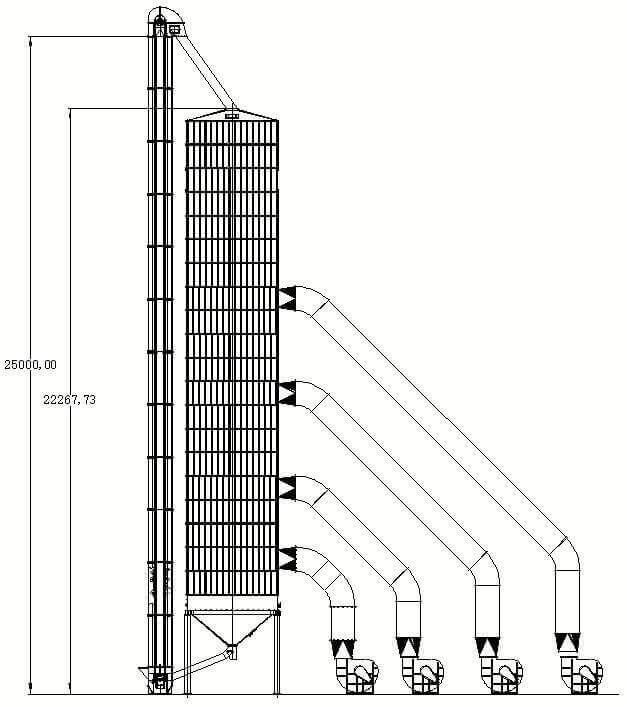

Henan Huatai Group 300TPD grain drying tower diagram

Henan Huatai Group 300TPD grain drying tower diagram

Huatai Group 300 Ton Grain Drying Tower Composition

Hot air blower: as heat source providing system, generate high-temperature hot air. Model: 4-72-8C 30KW, 4-72-8C 37KW, 4-72-9C 45KW.

Hot air distribution system: distribute the hot air generated by hot air blower to drying tower, ensure each grain can be fully dried.

Multi-layer drying tower body: constructed from metal plates, grain fall layer by layer from top to bottom within tower, fully in contact with hot air.

Dehumidification system: include dehumidification fan and dehumidification duct, exhaust moisture evaporated from grain and moist hot air out of the tower.

Cleaning and dust removal device: prevent impurities from entering the system, while recovering dust from the hot air, keep environment clean.

Automatic control system: Integrates monitoring and adjustment of parameters such as temperature, humidity, and airflow, enabling intelligent management of drying process.

Huatai Group 300 Ton Grain Drying Tower Parameters

Item Unit Design Value
Model Name / 5HN-300T
Structure Type / Continuous
Drying Method / Direct Heating
Drying Process / Counterflow
Dryer Body Dimensions (L×W×H) mm 3580×3580×22300
Processing Capacity t/d 300
Moisture Reduction Rate % 3-15
Drying Sections Number / 12
Cooling Sections Number / 3
Drying Sections Total Height mm 10800
Cooling Sections Total Height mm 2700
Cooling Section Height mm 1800
Effective Volume 168
Hot Air Temperature Range °C 45-160
Hot Air Fans Number / 3
Hot Air Fan Air Supply Type / Negative Pressure
No.1 Hot Air Blower / 4-72-9C
No.1 Hot Air Blower Motor Power kW 45
No.2 Hot Air Blower / 4-72-8C
No.2 Hot Air Blower Motor Power kW 37
No.3 Hot Air Blower / 4-72-8C
No.3 Hot Air Blower Motor Power kW 30
Cooling Blower Number / 1
Cooling Blower Model Name / 4-72-8A
Cooling Blower Motor Power kW 18.5
Dryer Motor Total Power kW 141.15
Heat Source Type / Fuel oil, natural gas
Heat Source Equipment Model Name / JLR-4 Hot air furnace
Heat Source Thermal Power kcal/h 2,400,000
Lifting Equipment Production Rate t/h 24

Grain Drying Tower Main Uses

  1. Quickly reduce grain moisture content to safe storage standard, reduce the risk of mildew.
  2. Improve grain quality, keep nutritional content and color.
  3. Suitable for grain processing needs of different scales, from small farm to large grain processing factory.

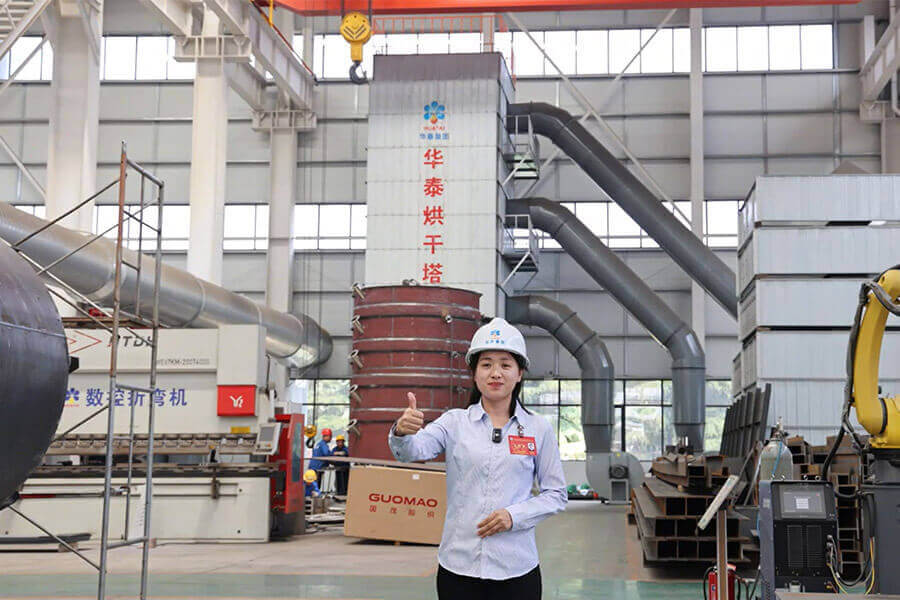

Grain drying tower installation

Grain drying tower installation

Henan Huatai Group Grain Drying Tower Features

High Efficiency and Energy Saving

Use advanced heat recovery technology and optimized hot air circulation system to greatly reduce energy consumption and improve drying efficiency.

Even Drying

The multi-layer tower design combined with intelligent airflow distribution system, ensure each grain is dried uniformly, prevent local overheating or over-moisture.

Intelligent Control

Integrated with advanced automatic control system, can monitor and adjust key parameters such as temperature, humidity, and airflow in real time, achieve precise control of drying process.

Environmental Protection and Low Noise

Use low-noise fans and environmentally friendly fuel to reduce noise pollution and harmful gas emissions, comply with national environmental protection standard.

High Adaptability

The drying process can adjust according to different grain types, moisture content, and climatic conditions to meet personalized needs of different users.
